TOR3 - 178mm Two Piece Tow Ramps
1 / 4
Description

Description

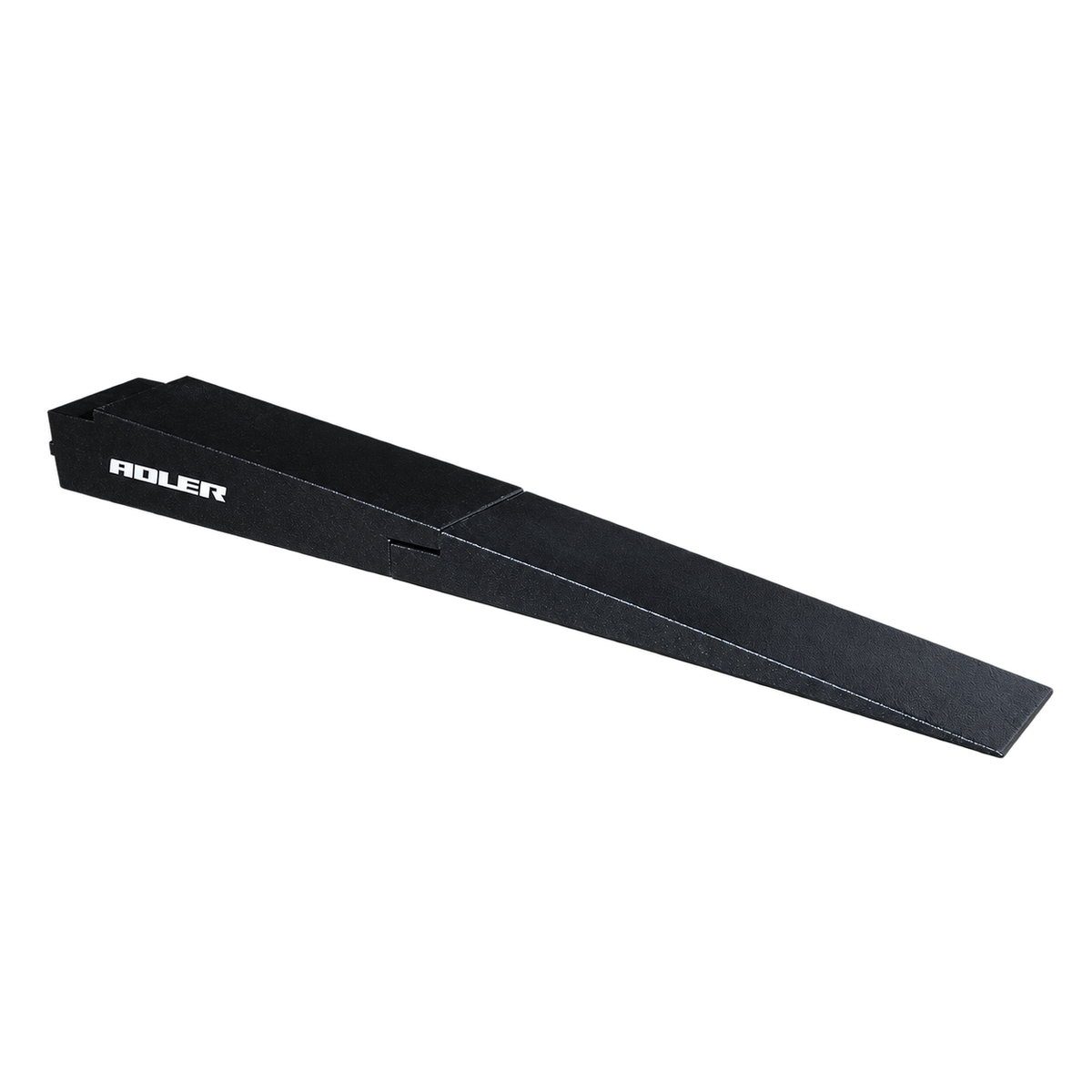

The Adler TOR3 is a tow ramp with a sloping approach and recessed upper end.

Specifications

  • Nominal dimensions: 1875 × 254 × 178 mm (L × W × H)
  • Incline shown: 6°
  • Rear recess length: 127 mm
  • Rear ledge height: 159 mm
  • Design: Two sections per ramp
  • Section lengths shown: 810.5 mm and 1064.5 mm

Installation

The recess provides a contact point for a compatible tow-bed edge. The ramp extends the approach between the ground and that edge.

Check tyre width, vehicle clearance and the published ramp dimensions against your intended use. Confirm the rated load limit with us before use if it is not supplied with the product. Position and use the product only as directed in the manufacturer’s instructions.

Check that the connection profile and supported contact area match the rack, main ramp, tow bed or trailer being used. Do not assume compatibility from overall height alone.

Specifications
Installation

Installation information is not currently available for this product.

Adler Shop

TOR3 - 178mm Two Piece Tow Ramps

£645.00
In stock

Includes VAT and Free UK Shipping

Drag or swipe to move around the image

  • Unbeatable Strength

    Our high quality choice of high-density foam means we insure that you have no worries about the durability under the stress of your vehicle whilst maintaining a lightweight product for maximum practicality.

  • TOR4 two-piece tow ramp helping a silver sports car transition onto a tilted recovery-truck bed.

    TOR4 two-piece tow ramps shown creating a gentler approach onto a tilted recovery-truck bed. The bed edge sits in the recessed end, helping the vehicle transition from the road onto the deck.

  • Easy on the go

    Paired with handles on the sides of our medium-large sized ramps makes transportation even easier, whether its trackside or inside the showroom. We make it even easier to get working or start storing.
