GSR15 - 76mm Jack Access Ramps with Stop
1 / 5
Description

Description

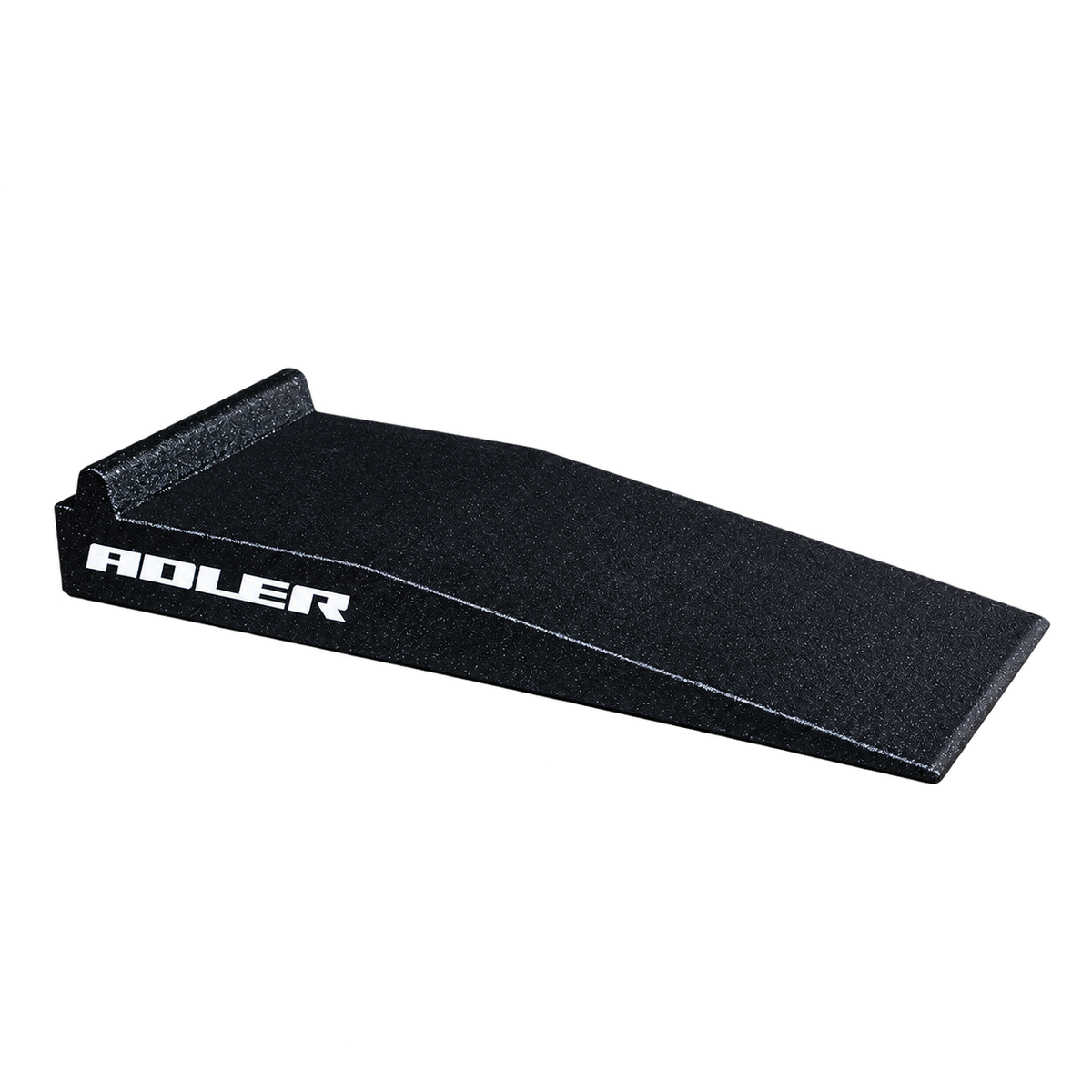

The Adler GSR15 is a low-rise garage ramp with a level wheel platform and raised stop.

Specifications

  • Nominal dimensions: 762 × 305 × 76 mm (L × W × H)
  • Platform height: 76 mm
  • Incline shown: 8°
  • Level platform length to the stop: 229 mm
  • Overall height including stop: 114 mm
  • Stop width along the ramp: 40 mm
  • Design: One piece

Installation

The platform provides a small increase in wheel height, while the raised stop marks the end of the drive-on surface.

Check tyre width, vehicle clearance and the published ramp dimensions against your intended use. Confirm the rated load limit with us before use if it is not supplied with the product. Position and use the product only as directed in the manufacturer’s instructions.

Specifications
Installation

Installation information is not currently available for this product.

Adler Shop

GSR15 - 76mm Jack Access Ramps with Stop

£260.00
In stock

Includes VAT and Free UK Shipping

Drag or swipe to move around the image

  • Unbeatable Strength

    Our high quality choice of high-density foam means we insure that you have no worries about the durability under the stress of your vehicle whilst maintaining a lightweight product for maximum practicality.

  • Pictured above is our GSR7 holding a 305/30/19 tyre and wheel combo.

  • Easy on the go

    Paired with handles on the sides of our medium-large sized ramps makes transportation even easier, whether its trackside or inside the showroom. We make it even easier to get working or start storing.
