Description

The Adler GSR11 is a long, four-section garage ramp with a shallow approach.

Specifications

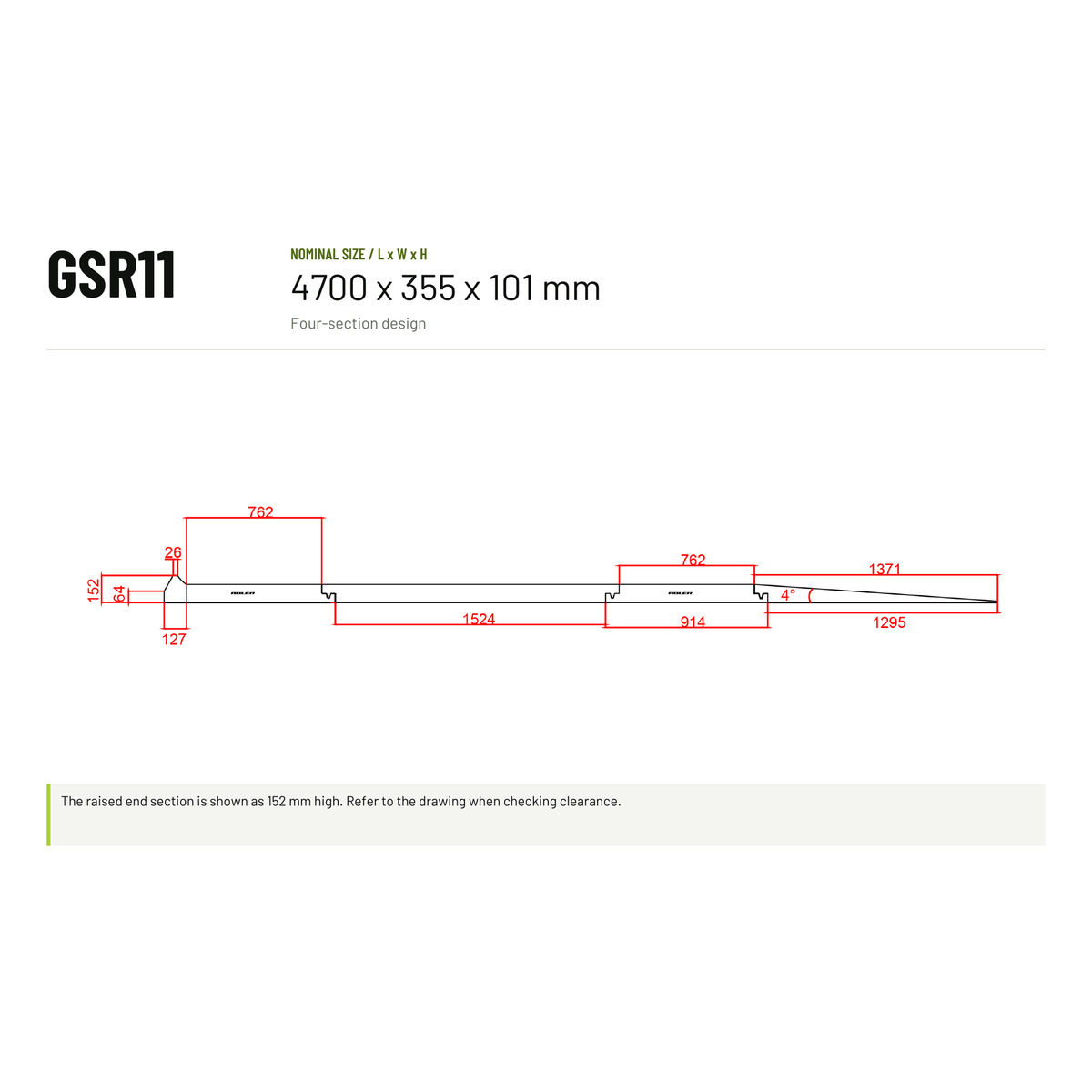

• Nominal dimensions: 4700 × 355 × 101 mm (L × W × H)
• Nominal assembled height: 101 mm
• Incline shown: 4°
• Design: Four sections per assembled ramp
• Raised end height shown: 152 mm

Shipping and packaging: One GSR11 order includes GSR11-1 (1800 × 380 × 350 mm) and GSR11-2 (1800 × 380 × 250 mm). The two cartons are stacked and strapped together for dispatch as one package, approximately 1800 × 380 × 600 mm (length × width × height).

Installation

The extended approach provides a gradual transition to the raised running surface. Its sectional layout breaks the full ramp into shorter components.

Check tyre width, vehicle clearance and the published ramp dimensions against your intended use. Confirm the rated load limit with us before use if it is not supplied with the product. Position and use the product only as directed in the manufacturer’s instructions.
