Description

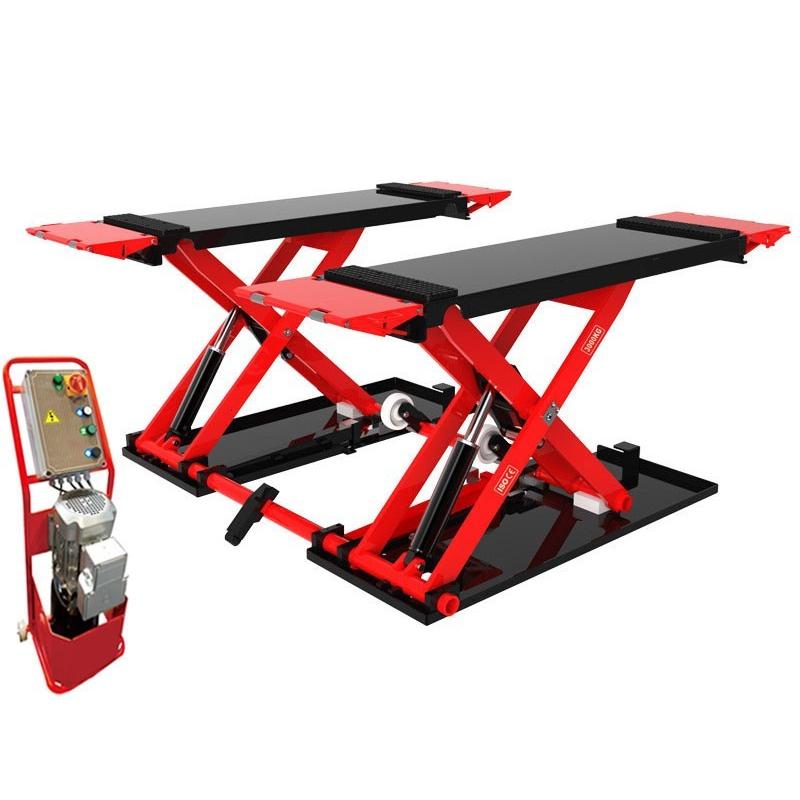

The 3 Tonne Mid-Rise Car Scissor Lift raises compatible vehicles for maintenance, inspection and repair. Its twin lifting platforms and scissor mechanism sit beneath the vehicle, providing access around the wheels and body without tall side posts.

The electro-hydraulic system is powered by a 2.2kW motor. The lift has a rated capacity of 3000kg, a lowered height of 105mm and a maximum lifting height of 1000mm without truck adaptors. Separate UP, DOWN and LOCK controls let the operator raise the vehicle, engage the mechanical safety lock and lower the lift with automatic lock release.

Specifications

• 3-tonne rated capacity: for compatible vehicles weighing up to 3000kg, correctly positioned at their approved lifting points.
• Mid-rise working height: raises the vehicle for wheel, brake and general maintenance work. Access underneath depends on the platform position and vehicle layout.
• Low-profile platforms: 105mm minimum height; check vehicle ground clearance before loading.
• Mechanical safety lock: the LOCK control seats the lift onto its lock. The lowering sequence first raises the lift briefly to release the lock.
• Repositionable design: the manual describes moving the lift using a moving tool attached to the front beam.

• Rated lifting capacity: 3000kg
• Maximum lifting height: 1000mm without truck adaptors
• Minimum height: 105mm
• Main platform length: 1440mm
• Overall platform length with end ramps: 1978mm
• Platform width: 460mm each
• Overall lift width: 1780mm, as shown in the manual's dimension drawing
• Motor power: 2.2kW
• Approximate raising time: 40 seconds
• Approximate lowering time: 30 seconds
• Platform steel thickness: 6mm
• Scissor arm steel thickness: 20mm
• Equipment weight: 590kg
• Voltage and phase: specified on the fitted motor's rating plate; confirm the supplied configuration before ordering

Installation

Check the vehicle's weight, ground clearance and approved lifting points against the platform layout before purchase. The lift requires a solid, level concrete floor capable of supporting the equipment and vehicle, with sufficient surrounding clearance for loading and operation. Installation must be completed by qualified installers, with electrical connection by a qualified electrician in accordance with the supplied manual.

Operate only as directed in the manual and engage the mechanical safety lock before working on a raised vehicle. Confirm any adaptor arrangement and the supplied accessories before purchase.
